FHD Medical Endoscope Camera System with SONY CMOS Sensor Built-in Video Recording and One-touch Freeze

Name: FHD Medical Endoscope Camera System with SONY CMOS Sensor Built-in Video Recording and One-touch Freeze
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: Fernseher-LSH101B
Price: 1,500.00 USD
Availability: InStock

Markenbezeichnung:	TUYOU
Modellnummer:	Fernseher-LSH101B
MOQ:	1 Satz
Lieferzeit:	Tage 3-15work
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE FDA ISO13485

Typ:

Endoskop

Instrumentenklassifizierung:

Klasse I

Markenname:

TUYOU

Modellnummer:

Fernseher-LSH101B

Eigenschaften:

Bildsystem für medizinische

Produktname:

Endoskopmedizinische Kamera

Bildsensor:

1/2,8 "Sony CMOS

Schlüsselwörter:

Medizinische Ausrüstung

Auflösung:

FHD

Verpackung Informationen:

Kastengröße: 48,5*48*26 "Gewicht: 11 kg ein PCs

Versorgungsmaterial-Fähigkeit:

2000 pro Monat

Hervorheben:

SONY CMOS Sensor Endoscope Camera System

Built-in Video Recording Medical Endoscope Camera

One-touch Freeze HD Endoscope Camera

Produkt-Beschreibung

TV-LSH101B FHD medical endoscope light source camera for Laparoscope/ENT/Arthroscope/Cystoscope

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

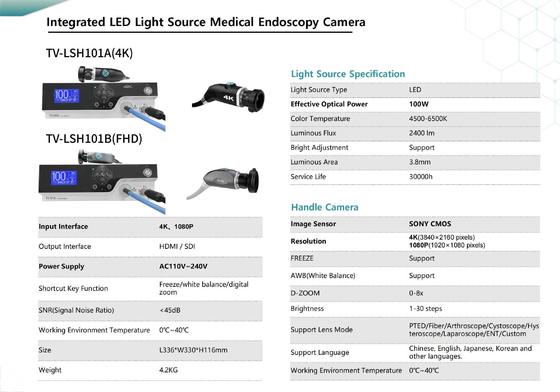

Product Specifications

System Parameters
Item Number	TV-LSH101B
Input Interface	FHD
Output Interface	HDMI/SDI
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

TV-LSH101B FHD medical endoscope light source camera for Laparoscope/ENT/Arthroscope/Cystoscope

Product Components

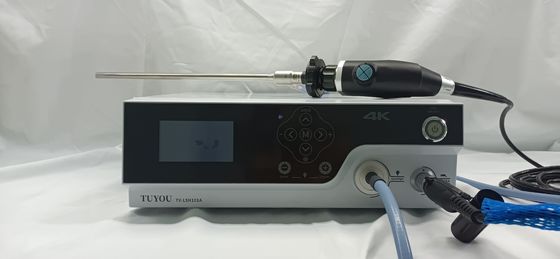

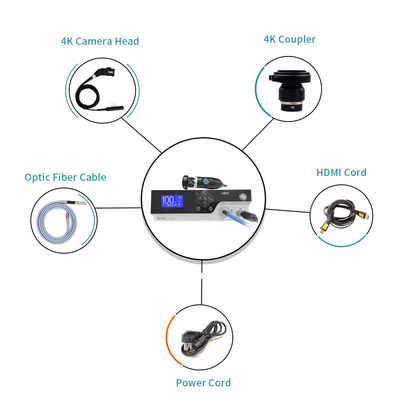

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
